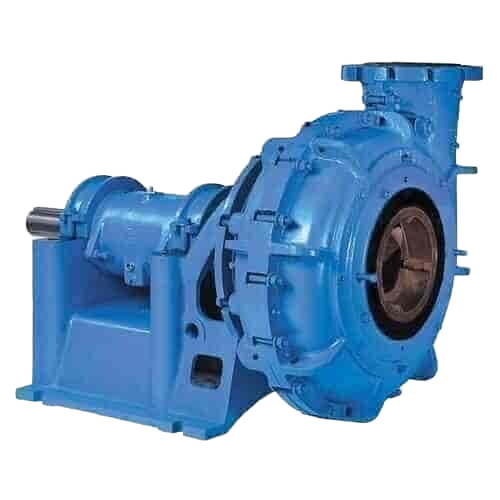

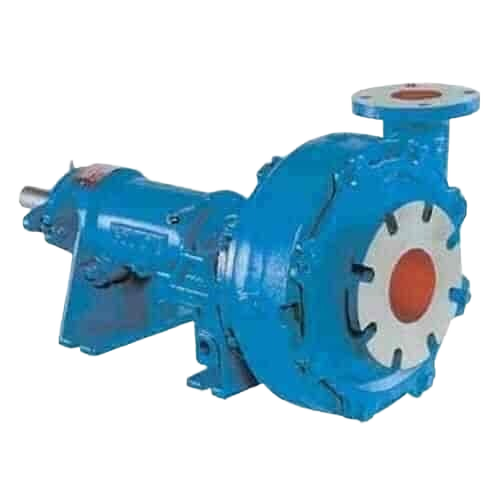

Cast Iron Slurry Pump

Get a Price/Quote

MOQ : 1 Unit

Cast Iron Slurry Pump Specification

Frequency
50Hz / 60Hz

Discharge Pressure
Up to 8 bar

Noise Level
80 dB(A)

Mounting Type
Baseplate Mounted

Features
Wear-resistant, Heavy-duty, Long Life, Easy Maintenance

Working Temperature
Up to 80C (optional higher for specific models)

Inlet/Outlet
50 mm to 300 mm (custom sizes available)

Voltage
220V / 380V / 415V, customizable

Speed
980 - 2900 rpm

Flow Rate
30 - 2000 m3/h

Head Size
Up to 80 meters

Control System
Manual / Automatic / PLC Control

Caliber
DN50-DN300

Max Suction
Up to 8 meters

Theory
Centrifugal Pump

Material
Cast Iron (also available in High Chrome Alloy, Stainless Steel - on request)

Structure
Horizontal Single-stage

Power
3 kW to 110 kW

Standard
ISO 5199 / ANSI B73.1 (Optional)

Fuel Type
Electric Powered

Pressure
Up to 8 bar

Usage
Slurry Transfer, Mining, Sand & Gravel, Power Plants, Chemical Industries

Application
Slurry, Mud, Minerals, Ash, Coal, Ore Handling

Suction Type
Single Suction

Seals Type
Mechanical Seal / Packing Seal

Priming
Self-priming / Non-self-priming (dependent on model)

Pump Type
Centrifugal Slurry Pump

Capacity
30 - 2000 m3/h

Paint Finish
Corrosion Resistant Epoxy

Accessories
Flange, Gaskets, Bolts, Coupling Guards (supplied as required)

Service Life
Long Operational Life in Harsh Conditions

Installation Position
Horizontal

Bearing Brand
SKF / NSK / Standard

Solid Passage Diameter
Up to 75 mm

Insulation Class
Class F / H

Coupling
Flexible Coupling

Impeller Type
Open / Semi-open / Closed (on request)

Drive Type
Electric Motor / Diesel Engine (optional)

Seal Arrangement
Cartridge Type (optional)

Impeller Material
Cast Iron / High Chromium Alloy

Cooling Type
Air Cooled / Water Cooled

Protection Class
IP44 / IP55 / IP65

Cast Iron Slurry Pump Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Units Per Month

Delivery Time
7 Days

Main Domestic Market
All India

About Cast Iron Slurry Pump

The Cast Iron Slurry Pump stands as a splendiferous solution for fluid transfer across the harshest environments. Available with open, semi-open, or closed impellers and customizable in both material and sizing, this ace pump guarantees cost-effective, pivotal performance. The robust, corrosion-resistant epoxy finish ensures a long operational life, even under grueling conditions. Choose from water or air-cooled models with SKF or NSK bearings and flexible couplings. With features scarce in conventional options, pick yours to elevate mining, power, and chemical operations with confidence and reliability.

Cast Iron Slurry Pump: Features & Competitive Edges

Our Cast Iron Slurry Pump features versatile impeller designs and wear-resistant materials, reinforced by a corrosion-resistant epoxy finish for extended use in tough conditions. The air- or water-cooled cooling options, along with standardized coupling and seal arrangements, ensure installation flexibility. Its primary competitive advantages include a customizable build, long service life, adherence to ISO/ANSI standards, and ace operational efficiency. Ideal for slurry, mud, ore, ash, coal, and mineral handling across power plants, mining, and the chemical industry.

Sample, Availability & Exchange Process for Market Value

We offer Cast Iron Slurry Pump samples, supporting your market value analysis before large-scale procurement. Our supply ability is consistent and reliable, capable of dispatching both bulk and customized orders swiftly. Payment terms are flexible, designed for smooth exchange. Each unit is securely packed and promptly dispatched, ensuring safe transit. Our streamlined packing and dispatch process lets you test performance first-hand, making us a pivotal partner for pump solutions in India.

FAQ's of Cast Iron Slurry Pump:

Q: How do I choose between open, semi-open, and closed impeller types for my application?

A: Selecting the impeller type depends on the solids content and particle size in your slurry. Open and semi-open impellers suit larger particles and more abrasive mixtures, while closed impellers are preferred for cleaner slurries and higher efficiencies.

Q: What is the process for ordering a customized Cast Iron Slurry Pump?

A: You can consult with our team to detail your specifications such as impeller material, size, cooling type, and sealing arrangement. We provide design recommendations, quote, and production timeline, ensuring the pump is tailored for your unique requirements.

Q: Where can the Cast Iron Slurry Pump be used most effectively?

A: This pump is ideal for handling slurry, mud, ash, minerals, ore, and coal in mining, power plants, sand & gravel pits, and chemical industries-especially where abrasive, heavy-duty performance with long service life is needed.

Q: What are the key benefits of the corrosion-resistant epoxy finish?

A: The specialized epoxy paint finish significantly increases resistance to chemical corrosion and physical wear, prolonging the pump's operational lifespan and reducing maintenance costs in harsh industrial environments.

Q: When can I expect delivery after exchange and packing?

A: Delivery timelines are typically coordinated at order confirmation. Standard models are dispatched promptly, while customized builds may require extra production time. Our secure packing and rapid dispatch ensure minimum transit duration within India.
