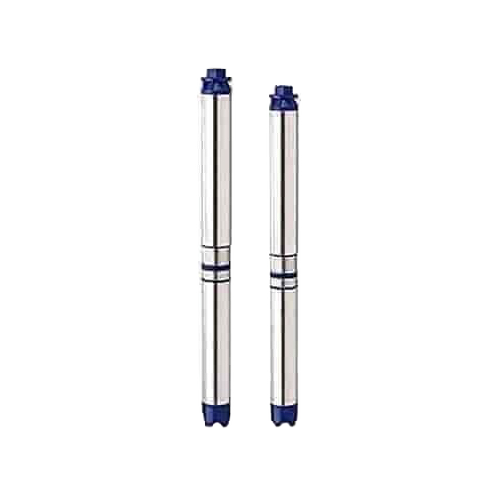

Three Phase Borewell Submersible Pump

Get a Price/Quote

MOQ : 1 Unit

Three Phase Borewell Submersible Pump Specification

Discharge Pressure
Max 35 bar

Caliber
Standard borewell diameter: 100 mm / 4 inch and above

Head Size
Maximum 350 meters

Control System
Manual or automatic starter panel

Working Temperature
0C - 50C

Max Suction
Submersible (not applicable, placed underwater)

Features
Corrosion resistant, efficient operation, low maintenance

Fuel Tank Capacity
Not applicable (Electric Driven)

Theory
Centrifugal Pump

Mounting Type
Vertical Submersible

Frequency
50 Hz

Flow Rate
up to 500 LPM (varies by model)

Speed
2850 RPM

Inlet/Outlet
1.5 inch x 1.25 inch (varies with model)

Noise Level
Low Noise

Voltage
380V/415V AC (Three Phase)

Material
Stainless Steel / Cast Iron combination

Structure
Multistage Vertical Submersible Pump

Power
1 HP to 20 HP (varies with model)

Standard
IS:8034 / IEC standards compliant

Fuel Type
Electric

Pressure
Up to 35 bar (varies by model)

Usage
Agriculture irrigation, water supply, industrial, domestic

Application
Borewell water lifting and pumping

Suction Type
Submersible

Seals Type
Mechanical Seal

Priming
Self-priming (submersible operation)

Pump Type
Three Phase Borewell Submersible Pump

Capacity
60 to 500 Litre/min (varies by model)

Impeller Type
Noryl / Stainless Steel

Start Method
Direct-On-Line (DOL) / Star Delta Starter

Phase Protection
Phase failure & Dry run protection (optional)

Motor Protection
Thermal Overload Protection

Bearing Type
Anti-friction Ball Bearings

Protection Rating
IP68

Insulation Class
Class B / Class F

Cooling Type
Water-filled

Serviceability
Easy to dismantle and repair

Cable Length
20 meters standard (extendable as required)

Three Phase Borewell Submersible Pump Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Units Per Month

Delivery Time
7 Days

Main Domestic Market
All India

About Three Phase Borewell Submersible Pump

Jump on the opportunity to own this Ace Three Phase Borewell Submersible Pump, featuring robust stainless steel/cast iron construction and a gorgeous, corrosion-resistant finish. Designed for effortless water lifting, it boasts terrific thermal overload and phase protection, ensuring reliable performance in agricultural, industrial, and domestic applications. Shop Now with a choice between Noryl or Stainless Steel impellers, up to 20 HP power, and 500 LPM flow rates. Gorgeous anti-friction bearings, easy serviceability, and a generous 20-meter cable make this pump the perfect, efficient solution. Reserve yours today for dependable and efficient pumping.

Versatile Application Areas for Three Phase Borewell Submersible Pump

This efficient submersible pump excels in a range of application media, from clear water in borewells to agricultural irrigation and industrial water supply. Designed for vertical mounting on borewell surfaces above 100 mm, it also performs admirably in domestic water lifting, delivering high pressure and superior flow even at great depths. Choose this pump to ace your diverse pumping needs across agricultural, commercial, residential, and industrial surfaces with dependable reliability.

Ace Export and Domestic Distribution of Submersible Pumps

Our Three Phase Borewell Submersible Pumps are available for prompt dispatching at leading domestic marts and international FOB Ports in India. Major export markets include Africa, Southeast Asia, and the Middle East, ensuring a terrific rate of global presence. Sample units are available upon request, supporting our commitment to quality assurance and customer satisfaction. Jump on our efficient distribution process and experience the reliability trusted across industries worldwide.

FAQ's of Three Phase Borewell Submersible Pump:

Q: How does the thermal overload protection enhance the pump's lifespan?

A: Thermal overload protection automatically disconnects the pump in case of overheating, preventing damage to internal components and significantly extending its operational life.

Q: What makes this pump suitable for agricultural and industrial applications?

A: With a wide capacity range, robust construction, and versatile voltage compatibility, this Three Phase Borewell Submersible Pump efficiently meets the high demands of agricultural irrigation, water supply, and industrial processing.

Q: When should I consider using phase failure and dry run protection features?

A: Phase failure and dry run protection features are ideal for environments prone to voltage fluctuations or inconsistent water levels, ensuring safe operation and reducing the risk of motor or pump damage.

Q: Where can this submersible pump be installed for optimum performance?

A: This pump is best installed in borewells with a minimum diameter of 100 mm (4 inches) for domestic, agricultural, or industrial water supply, ensuring optimal output and reliability.

Q: What is the process for extending the cable length if required?

A: The standard 20-meter cable can be professionally extended as needed; please consult your supplier or installation expert to ensure proper connections and optimal pump performance.

Q: How does the centrifugal theory benefit water pumping efficiency?

A: The centrifugal design delivers consistent, high-flow water movement, maximizing energy efficiency and providing steady pressure across a wide range of applications.
