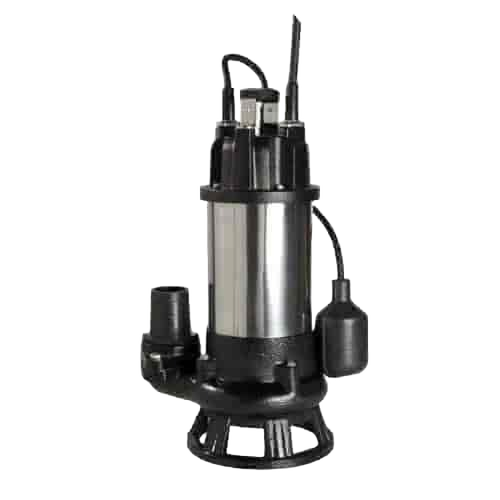

Mild Steel Submersible Sewage Water Pump

Send Inquiry

Request To Call Back

Mild Steel Submersible Sewage Water Pump

Get a Price/Quote

MOQ : 1 Unit

Mild Steel Submersible Sewage Water Pump Specification

Control System
Automatic Float Control / Manual

Caliber
50 mm

Discharge Pressure
1-3 bar

Head Size
10-30 m

Features
Corrosion Resistant, Non Clogging Impeller, Overload Protection

Max Suction
Submersible (Not Applicable)

Working Temperature
0C to 40C

Speed
2900 rpm

Frequency
50 Hz

Flow Rate
15-40 m3/h

Theory
Centrifugal Pump

Mounting Type
Floor Mounted (Vertical)

Voltage
220V/380V

Inlet/Outlet
2 inch / 2 inch (50 mm)

Noise Level
Below 70 dB

Material
Mild Steel Body with SS Sleeve

Structure
Single-Stage Pump

Power
1.5 kW - 15 kW

Standard
IS: 8034/ ISO 9001

Fuel Type
Electric

Pressure
Medium Pressure

Usage
Sewage, Waste Water, Drainage

Application
Sewage, Sludge, Effluent Water

Suction Type
Submersible

Seals Type
Double Mechanical Seal

Priming
Self-Priming (Submersible)

Pump Type
Submersible Sewage Pump

Capacity
Up to 40 m3/h

Cable Length
10 meters standard

Service Conditions
Suitable for Continuous Operation

Insulation Class
Class B/F

Operating Depth
Up to 15 meters submersion

Minimum Water Level Required
300 mm

Max Particle Size
30 mm

Installation
Easy Installation & Maintenance Free Operation

Protection Class
IP68

Impeller Type
Non-Clog, Vortex Design

Cooling Method
Water Cooled

Mild Steel Submersible Sewage Water Pump Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Units Per Month

Delivery Time
7 Days

Main Domestic Market
All India

About Mild Steel Submersible Sewage Water Pump

Unlock invincible performance and spectacular reliability with our Mild Steel Submersible Sewage Water Pump, designed for continuous opulent operation under challenging conditions. Featuring a vortex, non-clog impeller and double mechanical seals, it handles particles up to 30 mm with ease. Reserve yours with ease: its robust mild steel construction with stainless steel sleeve and IP68 protection guarantees resistance against corrosion and overload. Offering up to 40 m3/h flow and submersion up to 15 meters, this centrifugal masterpiece is your go-to for demanding sewage, sludge, and wastewater applications.

Distinctive Advantages and Application Versatility

The Mild Steel Submersible Sewage Water Pump truly stands out due to its corrosion-resistant build, non-clog vortex impeller, and efficient water-cooling system. Designed for spectacularly easy installation and maintenance-free operation, it is perfect for sewage, effluent, and waste water management. Its automatic and manual control options, along with vertical mounting, make it adaptable for industrial, municipal, and construction use. Simply install in a submerged state, and the pump will reliably operate with minimal supervision.

Market Certifications, Terms, and Export Excellence

Certified under stringent IS: 8034 and ISO 9001 standards, this sewage water pump ensures uncompromised market value and compliance. Packing & Dispatch are streamlined for minimal transit damage, guaranteeing safe delivery. Payment Exchange is seamless via multiple secure terms. Exported extensively from India, its main markets include Asia, Africa, and Middle Eastern regions. With robust packaging, trusted dispatch systems, and prominent certifications, the product continually commands a strong international presence.

FAQ's of Mild Steel Submersible Sewage Water Pump:

Q: How does the non-clog vortex design benefit usage in sewage applications?

A: The non-clog vortex impeller prevents blockages and enables the pump to efficiently handle solids up to 30 mm in diameter, ensuring uninterrupted operation in sewage, sludge, and effluent water applications.

Q: What is the process for installing the submersible sewage water pump?

A: Installation is straightforward: simply mount the pump vertically in the desired submerged location, connect the power cable (10 meters standard length), and select automatic or manual control as needed. No additional priming is required as it is submersible and self-priming by design.

Q: Where can this pump be effectively used?

A: This pump is most effective in sewage treatment plants, industrial drainage, municipal wastewater processing, construction sites, and commercial effluent management, thanks to its robust build and versatile design.

Q: What certifications does the Mild Steel Submersible Sewage Water Pump hold?

A: The pump adheres to IS: 8034 and ISO 9001 certifications, ensuring compliance with rigorous quality, safety, and performance standards for both domestic and international markets.

Q: When is the best time to perform routine maintenance on this pump?

A: Routine maintenance requirements are minimal due to its maintenance-free design; however, periodic checks every six months are recommended, especially in highly demanding usage environments to verify optimal performance and longevity.

Q: How does the overload protection function enhance pump safety?

A: The integrated overload protection feature automatically shuts the pump down during electrical surges or excessive load, safeguarding both the pump and operator from potential damage or operational disruption.
