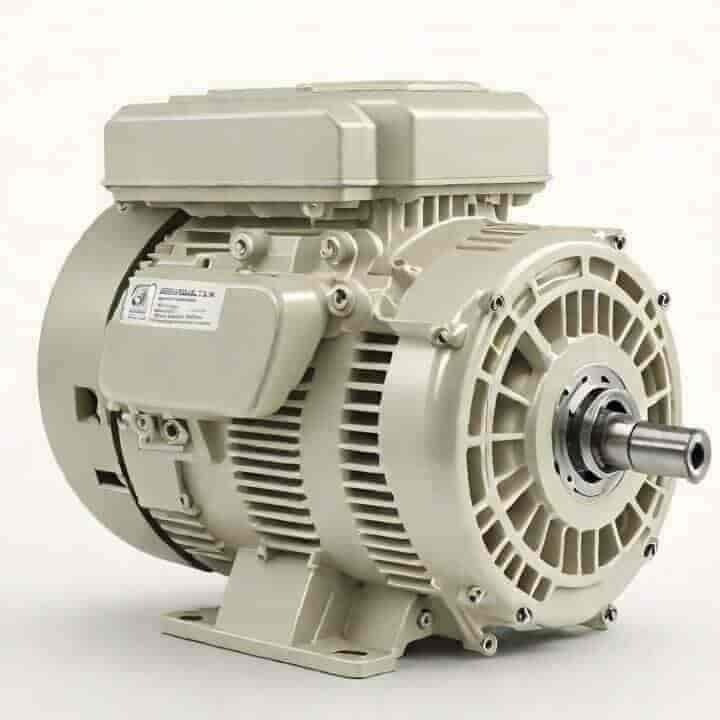

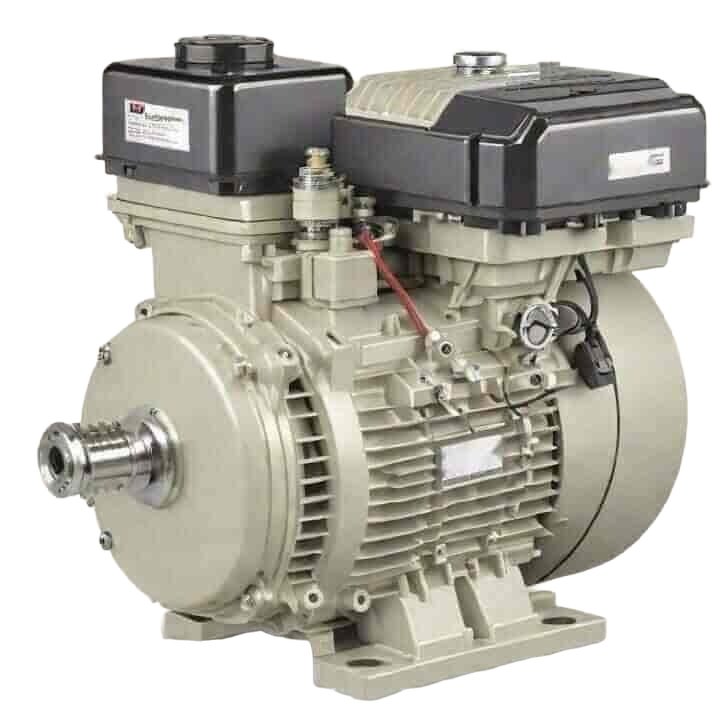

Heavy Duty Motor

• Ambient Temperature
• -15C to 50C

• Bearing Type
• Double shielded ball

• Color
• Brown

• Cooling Method
• Air cooled

• Current Type
• AC

• Dimension (L*W*H)
• 360 mm x 220 mm x 260 mm

• Efficacy
• IE2

• Features
• Overload Protection, Durable Construction

• Frequency (MHz)
• 50 Hz

• Horse Power
• 2 HP

• IP Rating
• Other, IP55

• Motor Type
• Heavy Duty Induction Motor

• Mounting Type
• Foot Mounted

• Noise Level
• <65 dB

• Output Power
• 2 HP

• Phase
• Single Phase

• Poles Number
• 4

• Power
• 1.5 kW

• Power Rating
• 1.5 kW

• Pressure
• Other, Standard atmospheric

• Product Type
• Other, Single Phase Heavy Duty Motor

• Protect Feature
• Other, Totally Enclosed Fan Cooled (TEFC)

• Rated Frequency
• 50 Hz

• Rated Voltage
• 220-240 V

• Sealed Type
• Other, Sealed bearings

• Shaft Diameter
• 28 mm

• Speed
• 1440 RPM

• Standard
• IS 996

• Starting Type
• Capacitor Start

• Torque
• 12 Nm

• Voltage
• 220-240 V

• Weight
• 28 kg

• Ambient Temperature
• -15C to 50C

• Bearing Type
• Ball Bearing

• Color
• Blue

• Cooling Method
• Fan Cooled

• Current Type
• AC

• Dimension (L*W*H)
• Varies by Model

• Efficacy
• High

• Features
• Robust Cast Iron Construction, High Strength, Low Maintenance, Reliable Performance

• Frequency (MHz)
• 50 Hz

• Horse Power
• 0.25 HP to 2 HP

• IP Rating
• Other, IP55

• Motor Type
• FHP (Fractional Horse Power) Motor

• Mounting Type
• Foot / Flange Mount

• Noise Level
• Low

• Output Power
• 0.25 HP to 2 HP

• Phase
• Three Phase

• Poles Number
• Other, 2, 4, 6 Poles

• Power
• 0.18 kW to 1.5 kW

• Power Rating
• 0.18 kW to 1.5 kW

• Pressure
• Other, Standard Atmosphere

• Product Type

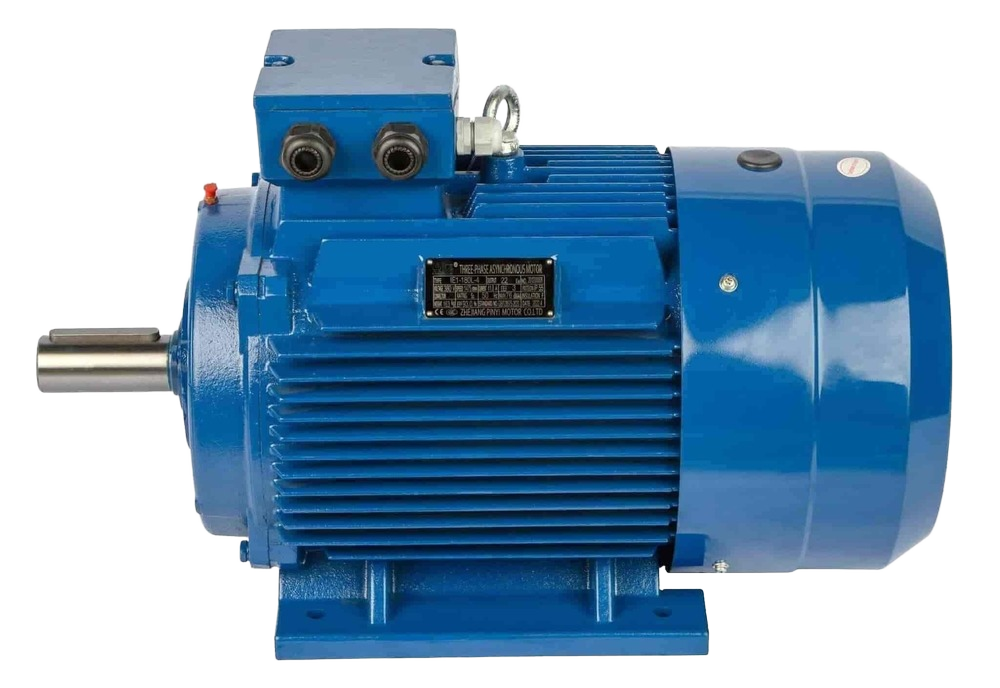

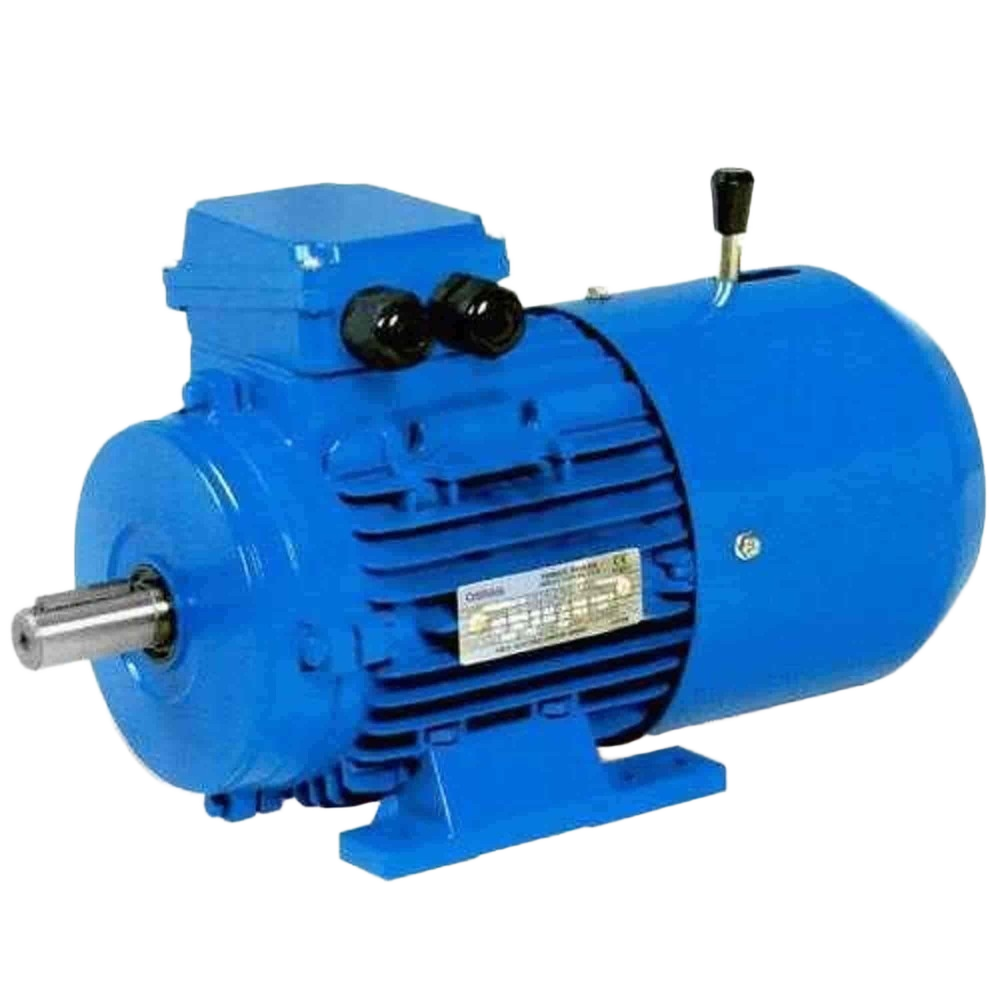

• Other, Three Phase Cast Iron FHP Motor

• Protect Feature
• Other, Totally Enclosed Fan Cooled (TEFC)

• Rated Frequency
• 50 Hz

• Rated Voltage
• 415 V

• Sealed Type
• Other, IP55

• Shaft Diameter
• Standard FHP Size

• Speed
• 1440 RPM

• Standard
• IS: 325

• Starting Type
• DOL

• Torque
• Nominal Rated

• Voltage
• 415 V

• Weight
• Approx. 15-45 Kg

• Ambient Temperature
• -15C to +50C

• Bearing Type
• Deep Groove Ball Bearing

• Color
• Blue (Standard)

• Cooling Method
• Fan Cooled

• Current Type
• AC

• Dimension (L*W*H)
• Depends on rated power and frame size

• Efficacy
• High Efficiency (IE2/IE3)

• Features
• Robust Construction, Low Maintenance, Energy Efficient

• Frequency (MHz)
• 50 Hz

• Horse Power
• 0.25 HP - 50 HP (varies)

• IP Rating
• Other, IP44 / IP55

• Motor Type
• Induction Motor - Squirrel Cage

• Mounting Type
• Flange Mounted (B5/B14)

• Noise Level
• Low; < 75 dB

• Output Power
• Varies as per model (commonly 0.25 HP to 50 HP)

• Phase
• Three Phase

• Poles Number
• Other, 2/4/6 Poles (as per model)

• Power
• 0.18 kW - 37 kW (per model)

• Power Rating
• Specified by model and application

• Pressure
• Other, Atmospheric (motor not pressure rated)

• Product Type

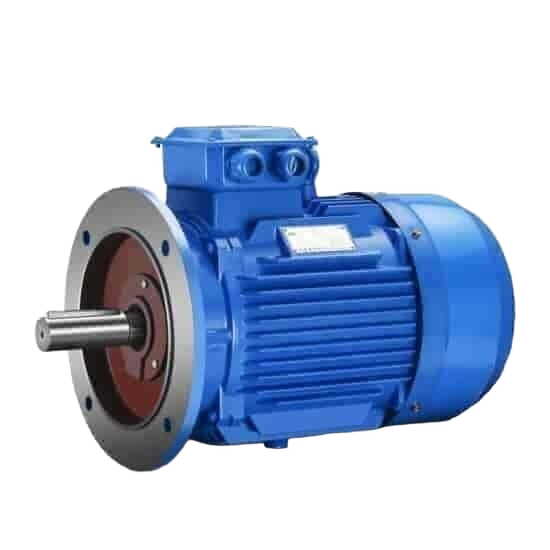

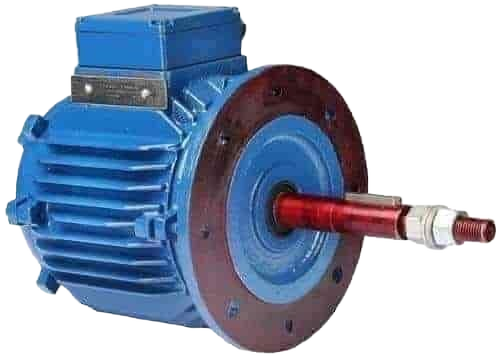

• Other, Three Phase Flange Mounted Motor

• Protect Feature
• Other, Totally Enclosed Fan Cooled (TEFC)

• Rated Frequency
• 50 Hz

• Rated Voltage
• 415 V

• Sealed Type
• Other, IP55 (Dust and Water resistant)

• Shaft Diameter
• Varies by motor size

• Speed
• 1440 RPM / 2880 RPM (per requirement)

• Standard
• IS 325 / IEC 60034

• Starting Type
• Direct-On-Line (DOL) / Star-Delta

• Torque
• High starting torque

• Voltage
• 415 V

• Weight
• Varies by model; typically 10 kg to 150 kg

• Ambient Temperature
• -15C to +40C

• Bearing Type
• Deep Groove Ball Bearing

• Color
• Grey or customizable

• Cooling Method
• Fan Cooled

• Current Type
• AC

• Dimension (L*W*H)
• Varies as per motor rating and frame size

• Efficacy
• High Efficiency

• Features
• Rugged construction, vibration-free operation, long life, suitable for continuous duty

• Frequency (MHz)
• 50 Hz / 60 Hz

• Horse Power
• 1 HP - 100 HP (as per demand)

• IP Rating
• Other, IP55

• Motor Type
• AC Squirrel Cage Induction Motor

• Mounting Type
• Face Mounted (B5)

• Noise Level
• Low

• Output Power
• 1 HP to 100 HP (typical range, customizable as per requirement)

• Phase
• Three Phase

• Poles Number
• Other, 2, 4, 6, or 8

• Power
• 0.75 kW to 75 kW

• Power Rating
• Up to 75 kW

• Pressure
• Other, Standard Atmospheric

• Product Type

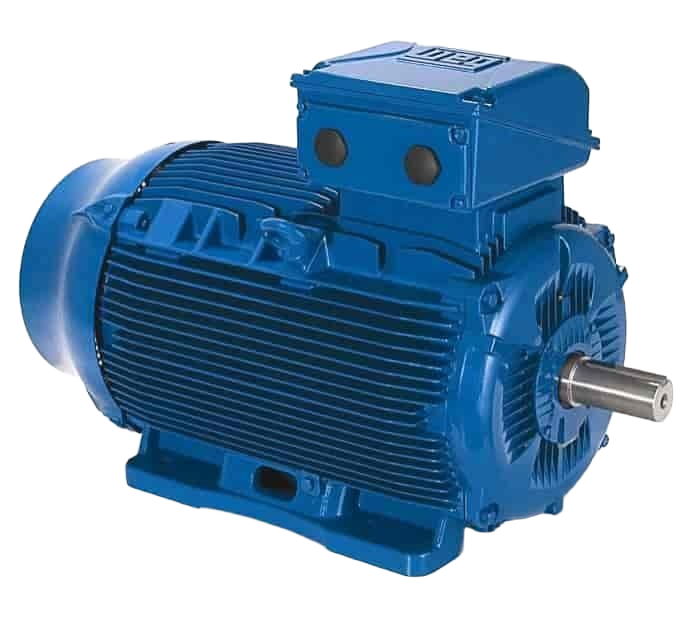

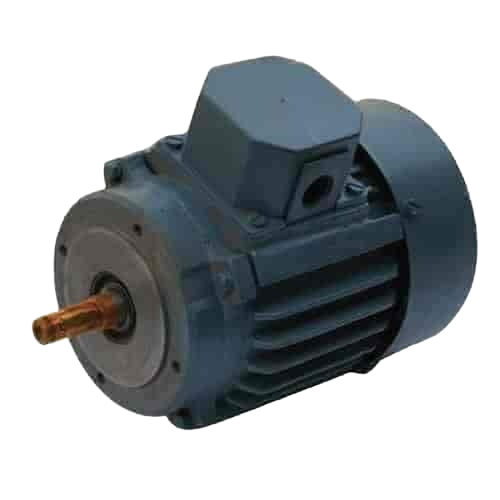

• Other, Three Phase Cast Iron Face Mounted Motor

• Protect Feature
• Other, IP55 (Dust and Water Resistant)

• Rated Frequency
• 50 Hz / 60 Hz

• Rated Voltage
• 415 V / 380 V / 440 V

• Sealed Type
• Other, Totally Enclosed Fan Cooled (TEFC)

• Shaft Diameter
• As per IEC/NEMA Standards

• Speed
• 1440 RPM / 2880 RPM (Based on pole configuration)

• Standard
• Conforms to IEC/IS Standards

• Starting Type
• DOL / SD (Star-Delta)

• Torque
• High Starting and Running Torque

• Voltage
• 415 V (Standard), available from 220 V to 690 V

• Weight
• Depends on size; typically 20 kg - 200 kg

• Ambient Temperature
• -15C to +50C

• Bearing Type
• Ball Bearing

• Color
• Silver / Grey

• Cooling Method
• TEFC (Fan Cooled)

• Current Type
• AC

• Dimension (L*W*H)
• Custom as per model

• Efficacy
• High Efficiency

• Features
• Double shaft, robust design, low maintenance

• Frequency (MHz)
• 50 Hz

• Horse Power
• 0.5 HP - 3 HP

• IP Rating
• Other, IP55

• Motor Type
• Double Shaft AC Motor

• Mounting Type
• Foot / Flange Mount

• Noise Level
• <70 dB

• Output Power
• 0.5 HP to 3 HP

• Phase
• Single Phase

• Poles Number
• Other, 2 / 4

• Power
• 375 W - 2250 W

• Power Rating
• As per model

• Pressure
• Other, Standard Atmospheric

• Product Type
• Other, Single Phase Double Shaft Motor

• Protect Feature
• Other, Totally Enclosed Fan Cooled (TEFC)

• Rated Frequency
• 50 Hz

• Rated Voltage
• 230 V

• Sealed Type
• Other, Sealed Bearings

• Shaft Diameter
• As per order

• Speed
• 1440 RPM

• Standard
• IS: 996, IEC 60034

• Starting Type
• Capacitor Start

• Torque
• High starting torque

• Voltage
• 220-240 V

• Weight
• 12-30 Kg (depending on specification)
